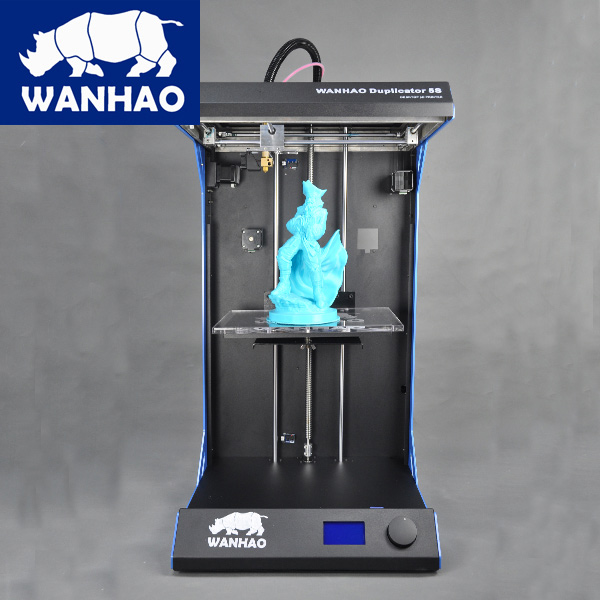

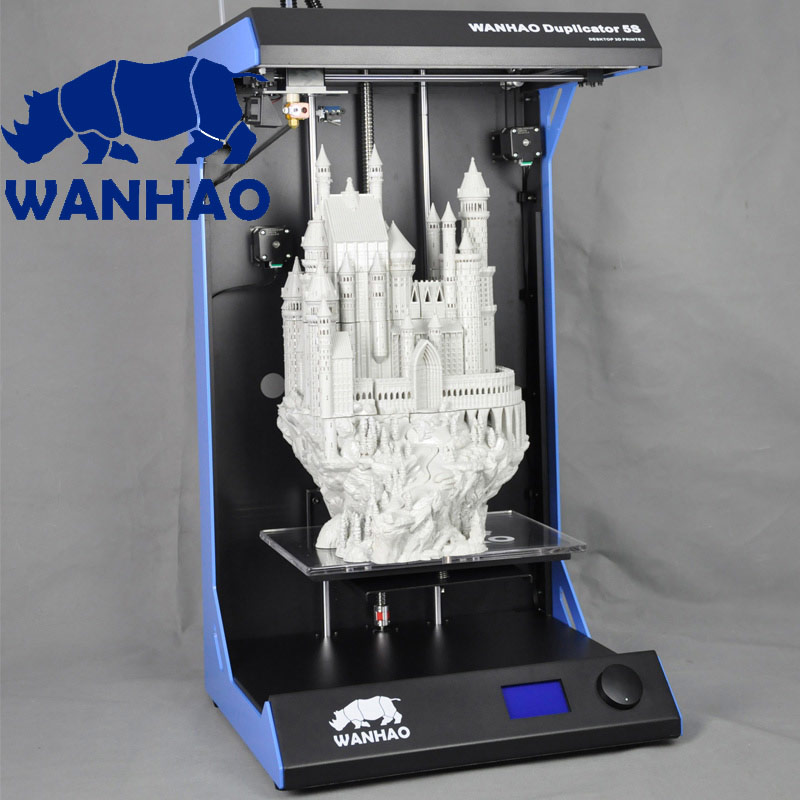

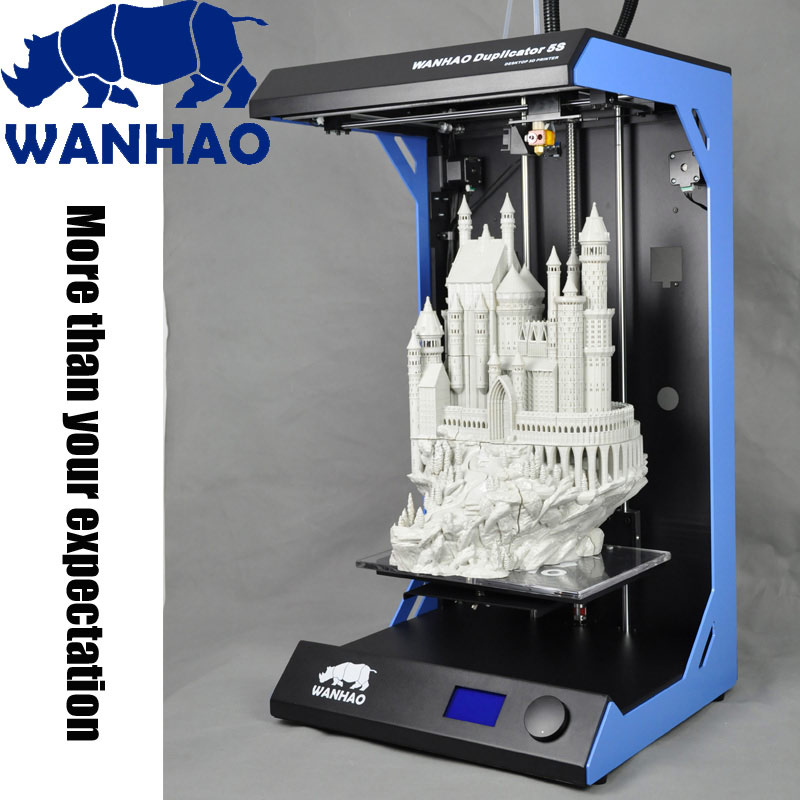

| DUPLICATOR 5S SPECIFICATION | |
| General Property | |
| Interface | SD or USB2.0 |
| Max Printing Object Size | 295*195*575mm |

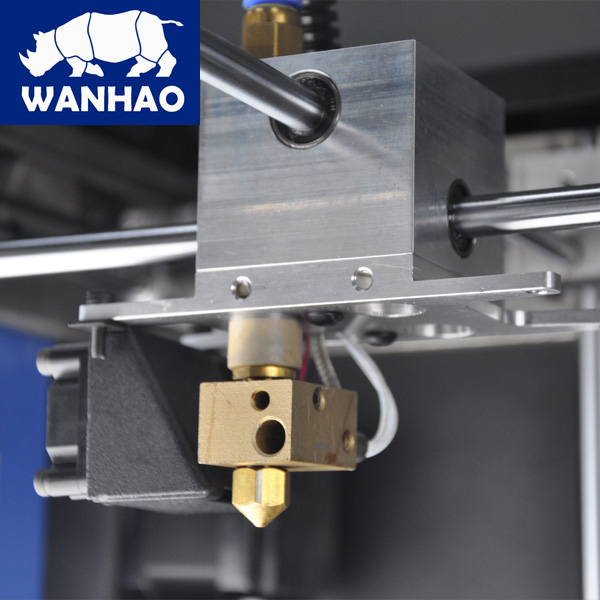

| Extruder | Anti-Jam Queen |
| X,Y Axis Positioning Resolution | 0.01mm |
| Layer thickness | Minimal 0.02mm |
| X,Y axis max speed | 5000mm/minute |

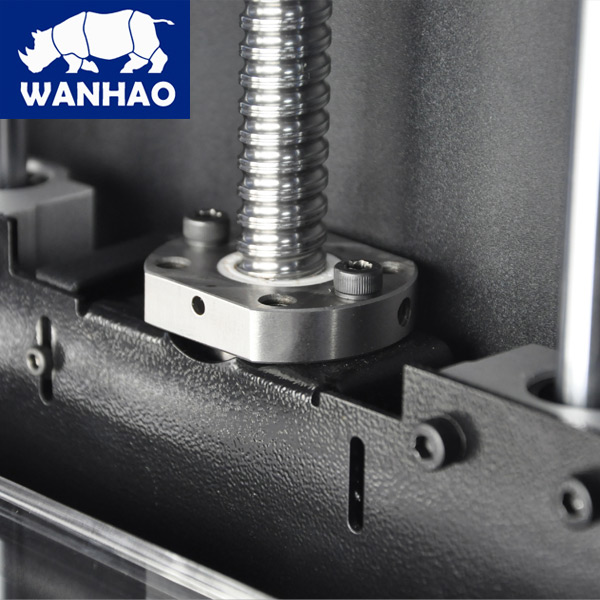

| Z axis positioning resolution | 0.005mm |
| Z axis max speed | 1000mm/minute |
| Software | Wanhao maker 1.2.5.2241 |
| Printing Material | PLA 3.0mm |
| Input power | 110V-220V |

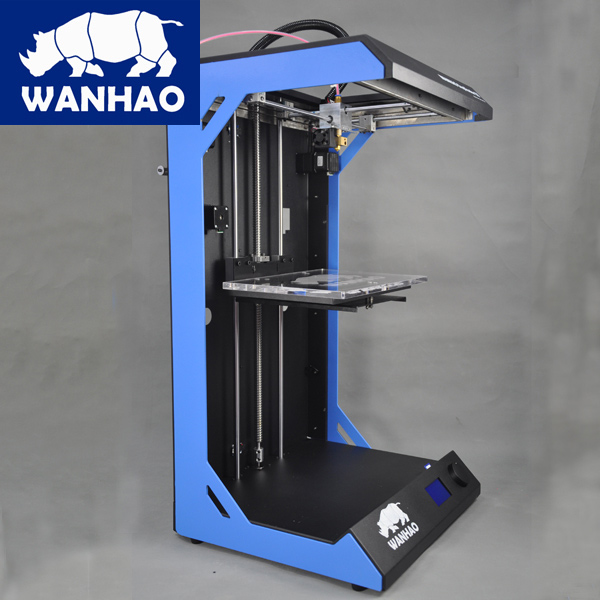

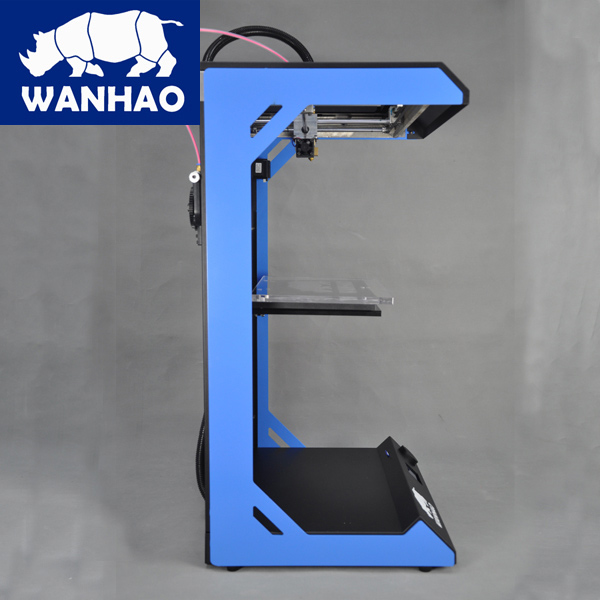

| Frame | Extreme XV Rock Steel structure |
| Input format | STL, |
| Output format | *.I |
| Noise | 48 decibel during printing |
| Dimension | |
| Product dimension | 455*415*810mm |
| Packing dimension | 570*530*910mm |
| GrossWeight | 39 kg |
| Material Support | PLA 3 mm |
| Material Size | 3.0mm filaments |
| Material size requirement | 3.0+-0.1mm |
| Temperature Sensor | thermocouple temperature sensors |
