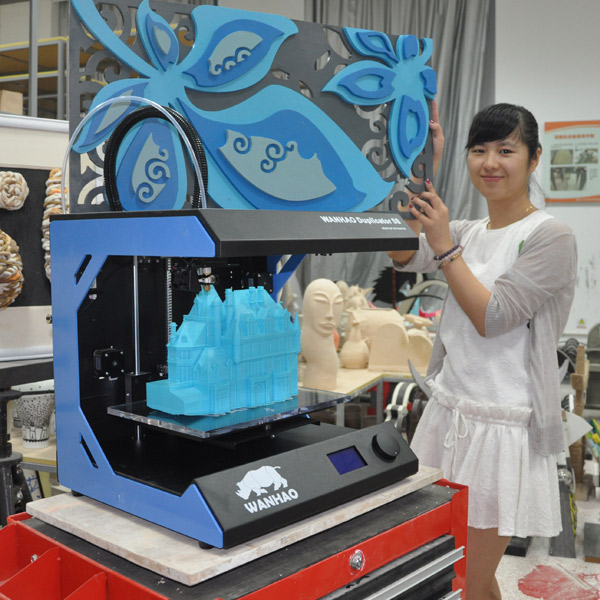

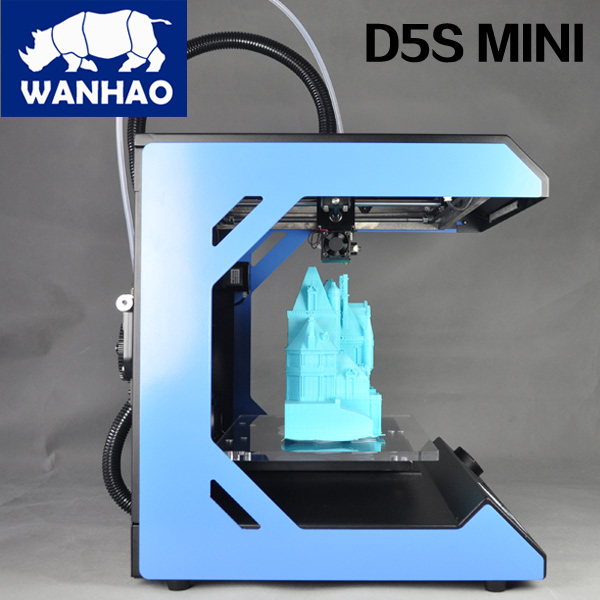

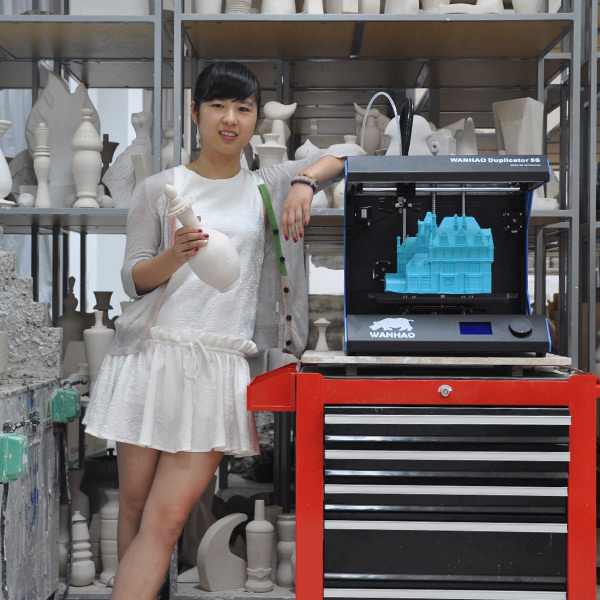

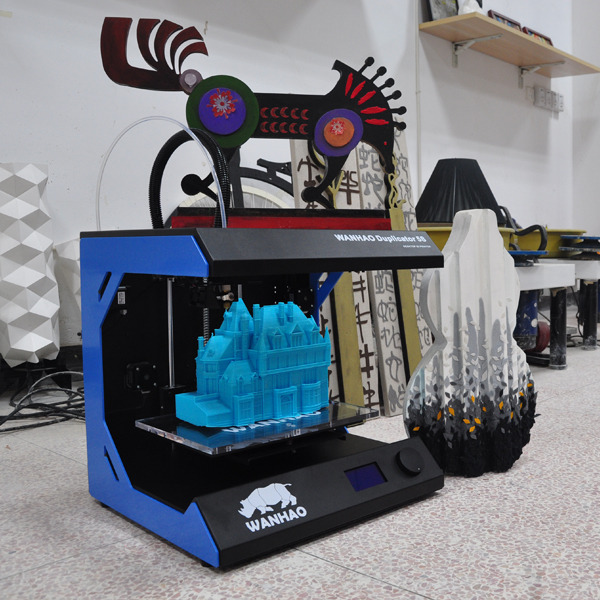

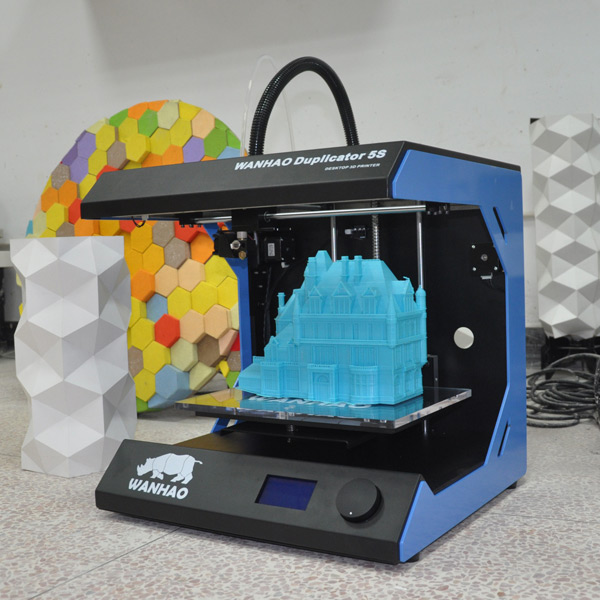

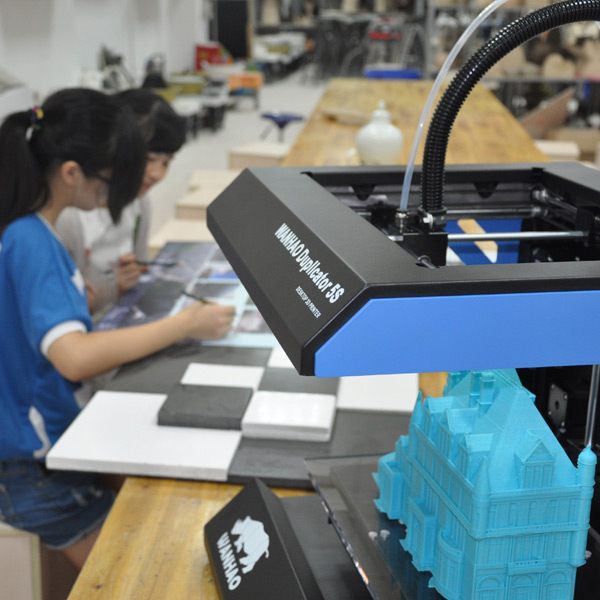

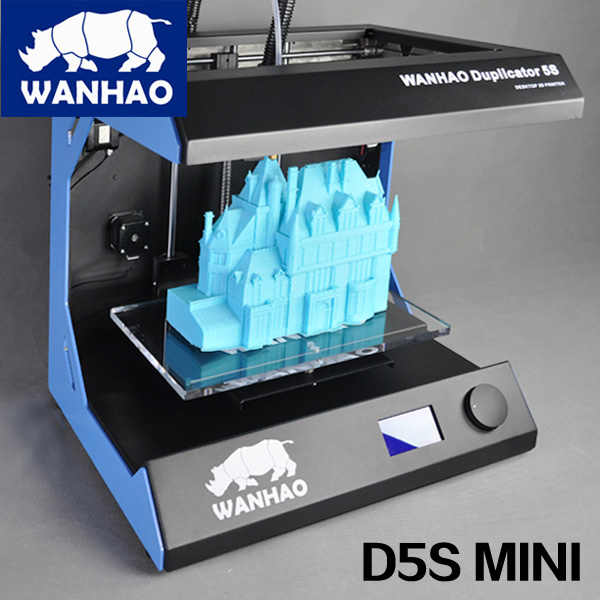

Duplicator 5S Mini
D4 AND D5 COMPARASION CHART
D5 USER MANUAL
<
| DUPLICATOR 5S Mini SPECIFICATION |
|
| |
|
| General Property |
|
| Interface |
SD or USB2.0 |
| Max Printing Object Size |
305*205*605mm |

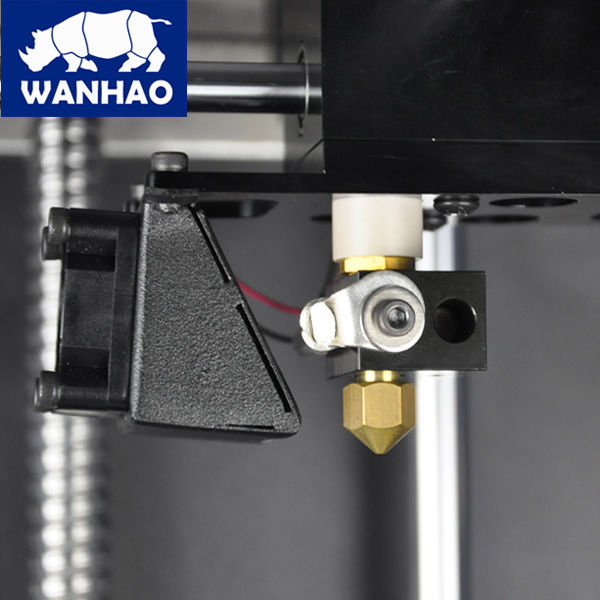

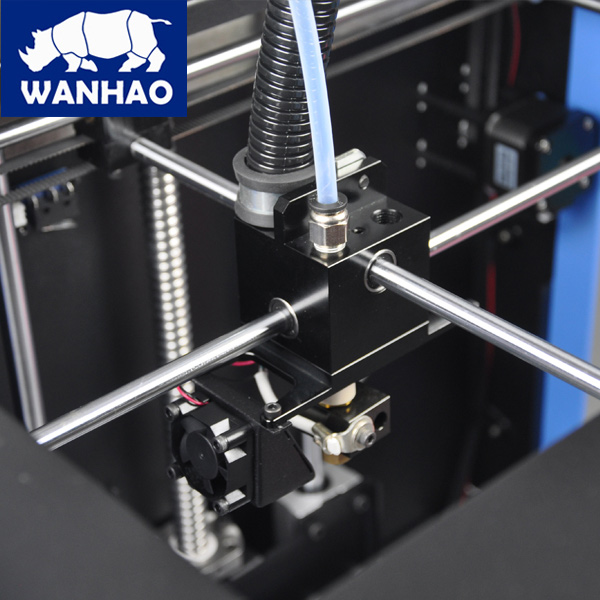

| Extruder |
Anti-Jam Queen |
| X,Y Axis Positioning Resolution |
0.01mm |
| Layer thickness |
Minimal 0.02mm |
| X,Y axis max speed |
5000mm/minute |
| Z axis positioning resolution |
0.005mm |
| Z axis max speed |
1000mm/minute |
| Software |
Wanhao maker 1.2.5.2210 |
| Printing Material |
PLA 3.0mm |
| Input power |
110V-220V |
| Frame |
Extreme XV Rock Steel structure |
| Input format |
STL, |
| Output format |
*.I |
| Noise |
48 decibel during printing |
| |
|
| Dimension |
|
| Product dimension |
400*460*350mm |
| Packing dimension |
510*570*750mm |
| Weight |
21kg |
| Material Support |
PLA |
| Material Size |
3.0mm filaments |
| Material size requirement |
3.0+-0.1mm |
| Temperature Sensor |
thermocouple temperature sensors |
